analysis, genetic engineering, and many other fields rely on fast, precise, and
reproducible chemical and biological analyses. Tools that automate the dosing and
analysis of fluid samples are essential for affordable performance.
dosing of liquids still a prominent issue must be done physically. This operation is usually
accomplished with specialized micro-syringes driven by stepper motors. It's easy to imagine the
difficulty and expense associated with such setups.
Switzerland) developed flow-through micro-fluidic dosing as part of a toolkit for experiments
performed in space. As described in the following, a key element of that design was a micro-
flow sensor device. Requirements were:
restriction integrated into a micro-flow channel. Pressure measurements are performed with
dual piezo-resistive pressure sensors, one placed before the restriction and the other behind.
under pressure is applied to the back of the sensor diaphragm (whose monocrystal-line silicon
is relatively insensitive to the chemicals) rather than the front. This unusual configuration
protects sensitive microelectronic circuits on top of the sensor by shielding them from the
liquid. To prevent error from mechanical-tension forces, the sensor is mounted on a thick

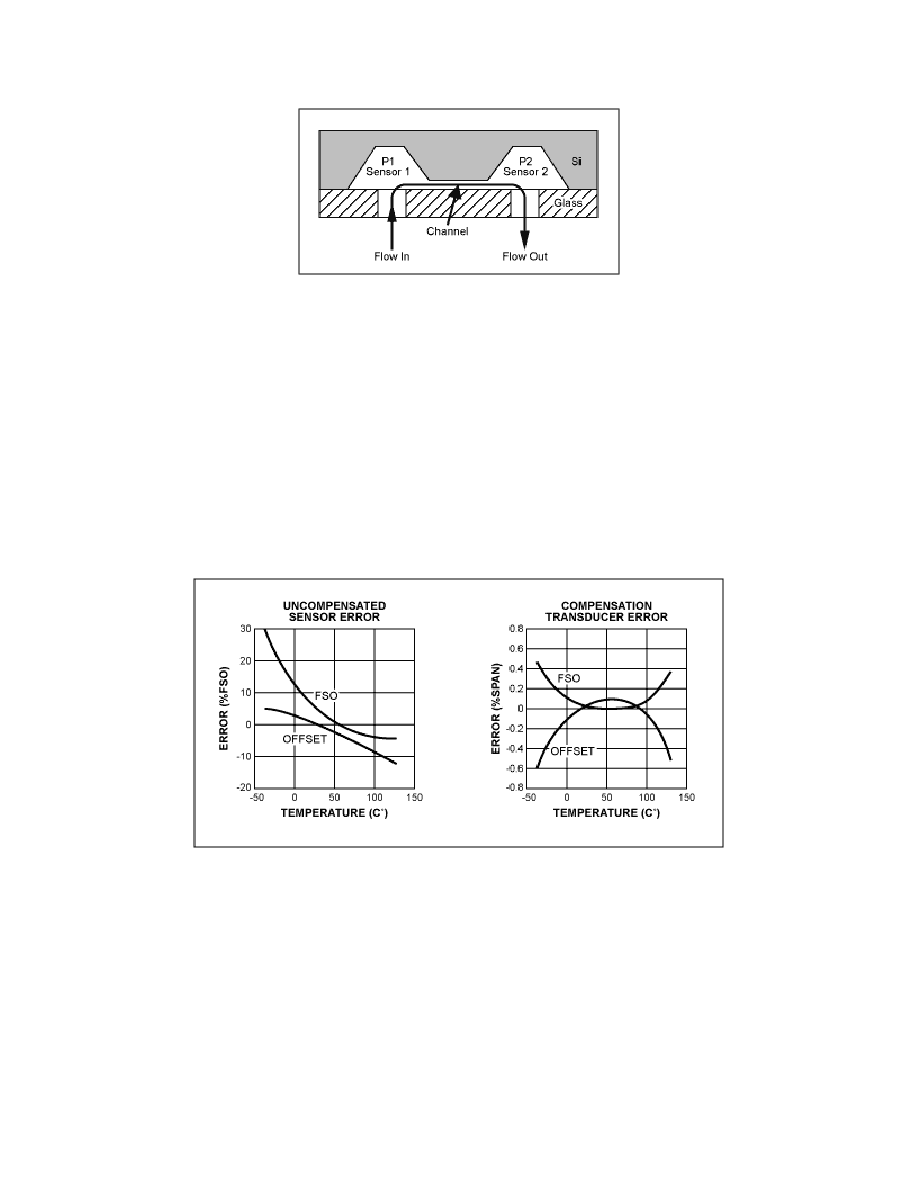

ceramic substrate (Figure 1).
on a thick ceramic substrate.
quite sensitive to changes in environmental temperature. Until recently, there was no way to
compensate these errors while achieving the small size and fast response needed in micro-
fluidic flow sensing. One solution to this problem is the new MAX1458 sensor-signal
processor, which compensates piezo-resistive sensors for initial and temperature-dependent
errors. Figure 2 compares the output of an uncorrected sensor with the same output
compensated with this IC.
achieved with the MAX1458 sensor-signal conditioner.
signal path. For applications exposed to large environmental temperature changes such as the -
40°C to +125°C automotive range, the MAX1458 delivers a total output accuracy better than
1%. For a more limited span such as +15°C to +45°C, the total pressure accuracy approaches

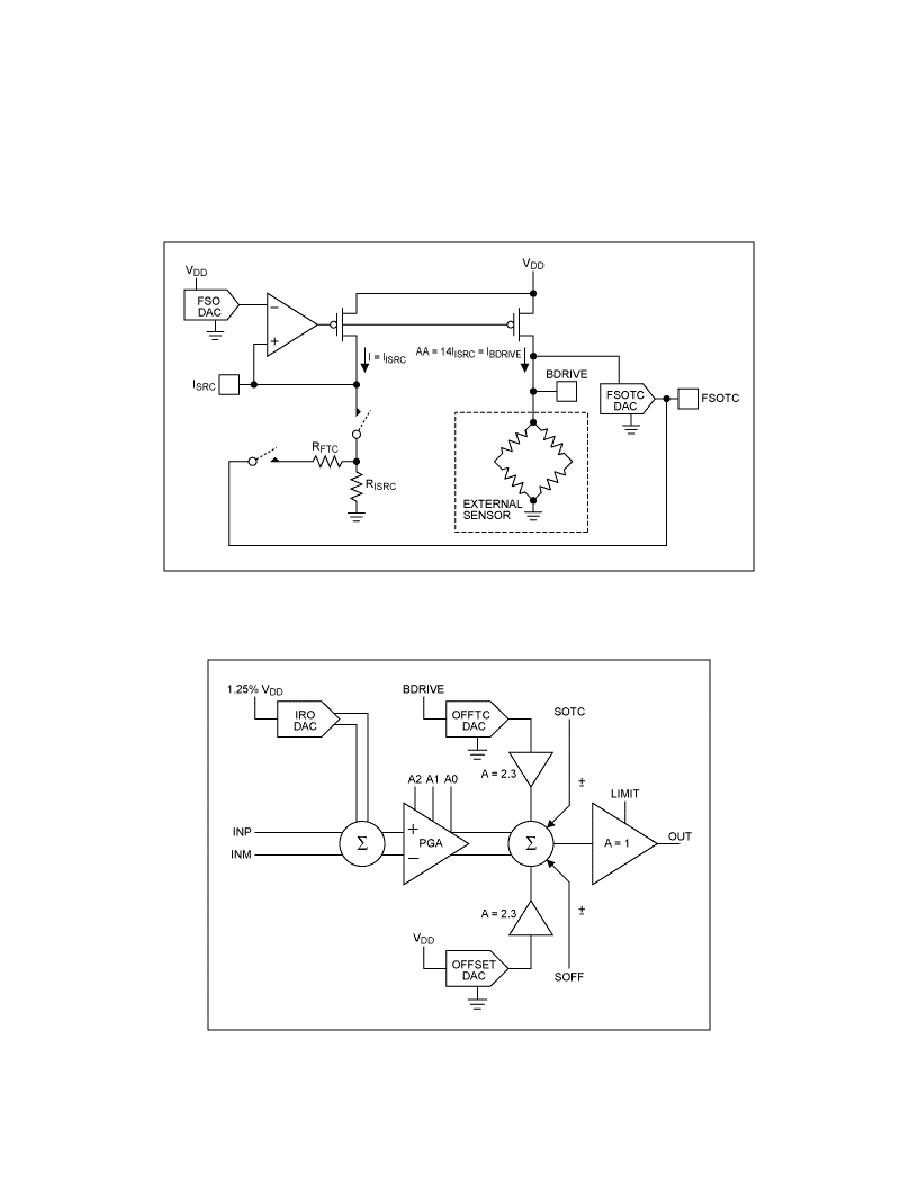

bridge excitation circuit counteracts any decrease in sensitivity by causing the bridge-drive
voltage to rise with temperature. The compensated sensor bridge also acts as a temperature
sensor, and is sufficiently linear to serve for correcting offset drift vs. temperature.
it accommodates sensor sensitivities of 10mV/V and higher. All coefficients required for
compensation are held in an EEPROM internal to the MAX1458. Thus, the setup is easily and
automatically calibrated via a simple 4-wire serial interface.
on the liquid's viscosity, which in turn changes with temperature, the MAX1458 provides a
temperature output signal for use in external signal processing. This setup (Figure 4) allows the
measurement of flow rates no higher than 5.5µl/sec. The analog pressure signals, the
temperature sensor terminals, and all other connections are made accessible at a connector for

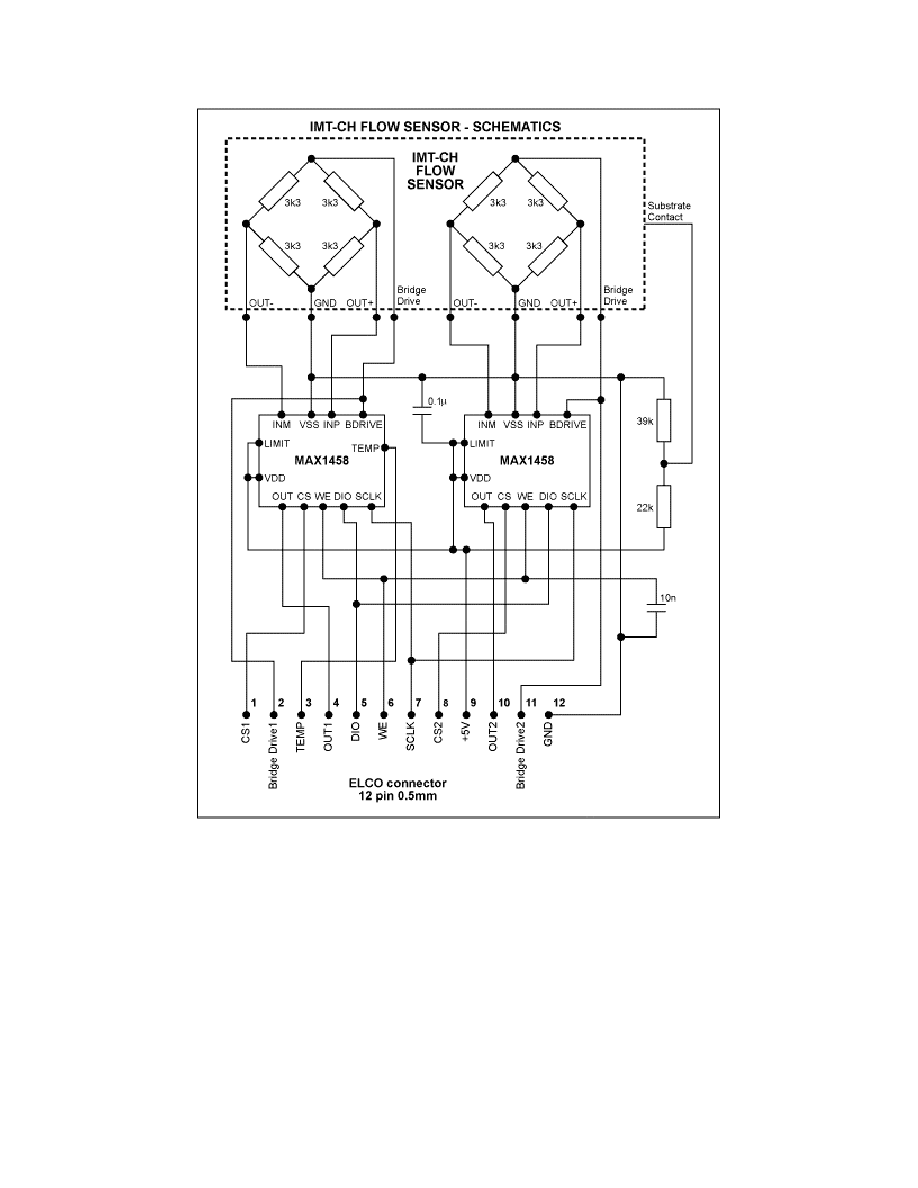

a monolithic flow sensor module, wire-bonded to the ceramic carrier, connects to the two
sensor-signal processors (MAX1458s), which are also wire-bonded and mounted as dice.
Figure 6 illustrates a micro-fluidic dosing and analysis system, in which the flow-sensor output
described above serves as a feedback signal in achieving continuous and dynamic flow-rate
