Datasheet: D1520 (Fujitsu Media Devices Limited)

Mainboard D1520



Download: PDF   ZIP
Fujitsu Media Devices Limited
www.fujitsu-siemens.com

Chipset:
Intel 845GE
Processors:
Intel
Pentium
4 Processors,
mPGA 478 with 533/400 MHz
FSB
Intel
Celeron
Processors,
mPGA 478 with 400 MHz FSB
Memory:
DDR333 SDRAM (PC2700)
DDR266 SDRAM (PC2100)
Product Features:
Graphics on board
Audio on board
USB 2.0 on board
LAN on board
Mainboard D1520
Intel 845GE Chipset for
DDR333 SDRAM (PC2700) Memory and
Intel Pentium 4 Processors (533 MHz FSB)
Data Sheet Mainboard D1520 Issue May 2003

Data Sheet Mainboard D1520 Issue May 2003
Published by

Fujitsu Siemens Computers
http://www.fujitsu-siemens.com/mainboards
All rights, including rights created by patent grant or registration of a
utility model or design as well as rights of technical modifications are
reserved. Delivery subject to availability. Designations may be
trademarks, the use of which by third parties for their own purposes
may violate the rights of the trademark owners.

Copyright
Fujitsu Siemens Computers, 02/2003
Company stamp

D1520-A
Features
Chipset Intel
845GE
Board Size
ATX
VGA
Audio / 6 channel / S/PDIF 5.1
/ /
Buzzer / int. Speaker Support
/ -
LAN / with Alert-on-LAN
/ -
RAID -
FireWireTM
-
HI-SPEED USB 2.0
-
SmartCard SystemLock(USB / Serial)
- / -
Silent Fan
-
Fujitsu Siemens Computers
Keyboard Power Button Support
-
Internal Connectors
DIMM Sockets (DDR333 SDRAM, PC2700)
2
AGP Slot (2/4x, 32Bit, 66 MHz, 1.5 V)
1
PCI Slots (32Bit, 33 MHz, 5 V and 3.3 V)
3
CNR Slot (Type A, AC'97 only)
1
S-ATA (150 Mbyte/s)
-
ATA(Ultra DMA/100)
2
Floppy Interface (up to 2.88 MB)
1
S/PDIF (5.1 digital Audio) OUT / IN
1 / -
CD / AUX Audio Input
1 / -
Frontpanel Audio (headphone, microphone)
1
Wake-on-LAN -
IEEE 1394* (FireWireTM/ i.Link
) -
USB* (2.0, ~480 MB/s)
4
Serial* (FIFO, 16550 compatible)
-
FAN PSU**/CPU/AUX1/AUX2
- / 1 / 1 / -
SMBus* (Case Temperature)
-
Intrusion* (Case Open)
-
Power ATX/ATX 12V/AGP Pro
1 / 1 / -
External Connectors
VGA 1
Audio Mic. In / Line in / Line out (2 x 0.5 W / 8
)
or Surround / Center, LF / Front
1 / 1 / 1
S/PDIF (5.1digital Audio) OUT / IN
- / -
Game/MIDI -
LAN (RJ-45)
1
PS/2 Mouse / Keyboard
1 / 1
USB Ports (2.0, ~480MB/s)
2
Serial Ports (FIFO, 16550 compatible)
1
Parallel Port (EPP/ECP)
1
* for use with internal devices or optional Front- or Rearpanel
** not supported by standard Power Supplies
Board Size
ATX: 9.6" x 9.6" (243.8 x 243.8 mm)
Chipset
Intel
845GE
Memory
2 DIMM Sockets (2.5 V), 32 MB - 2 GB, 184 Pin,
DDR333/266 SDRAM (PC2700/2100), unbuffered, no ECC
(For details on recommended RAM, please refer to our website)
Processors
Intel
Pentium
4 Processors, mPGA 478, 533/400 MHz FSB
Intel
Celeron
Processors, mPGA 478, 400 MHz FSB
(For details on processors supported, please refer to our website)
Power Specification
ATX 12 V Power Supply required
Support for Soft-Off Power Supplies
5 V and 3.3 V Supply Voltage on PCI Slots
3.3 V Auxiliary Supply Voltage on PCI Slots (Wake-Up Function)
On board CPU Voltage Regulator, 5 V / 2 A Auxiliary Power
required for USB Wake-Up from Save-to-RAM, Save-to-Disk
Power Supply Requirements
for onboard components (worst case)
Source
Voltage
Maximal
Mainboard
variation
current
(Maximal)
+ 12 V
5 %
8 A
Main Power
- 12 V
10 %
0.05 A
Supply
+ 5 V
5 %
0.9 A
+ 3.3 V
5 %
3.4 A
Aux. Power Supply + 5 V
5 %
2 A
BIOS
Phoenix NuBIOS V4.06 modified and adapted by
Fujitsu Siemens Computers
SM-BIOS (DMI), BIOS Update via disk, Quick Boot, Logo Boot
Quiet Boot (Silent Screen), Plug & Play, Automatic DRAM and
PCI Configuration, Advanced Power Management
ACPI S4 (Save-to-Disk), ACPI S3 (Save-to-RAM)
Security Features
Recovery BIOS, System and BIOS Password, Boot and/or Write
Protection for Floppy Disk Drive, Boot Sequence Control for each
Floppy and IDE Drive, Serial and Parallel Port Access Protection,
Boot Sector Virus Warning, Write Protection for Flash BIOS
Special Features
Silent Drives
Noise reduction for optical and hard disk drives
Recovery BIOS Restores a corrupted BIOS
Desk Update
Simple driver update with DU CD
Multi Boot
Comfortable boot from any boot device USB
Security
Access protection with Fujitsu Siemens
Computers Memory Bird
External Connectors
Graphics
Integrated Intel
Extreme Graphics, 2D/3D Graphics Controller,
256 Bit, 120 Hz max. Refresh Rate, 2047x1536x16 max. Resolution,
350 MHz RAMDAC, Dynamic Video Memory Technology,
upgradeable with AGP Graphics Card or ADD Cards to add support
for digital displays or TV Out, DDC 2B Support for Monitor Detection
Audio
Analog Devices AD1980, AC `97 Audio, 6-channel Surround
Sound, HW 3D Stereo Enhancement, SW Soundblaster
Emulation (Win98/WinME/ Win2000) Support, SW Wavetable
Synthesis Support, S/PDIF 5.1
LAN
Intel
LAN Ethernet Controller 82562 ET with 10/100 Mbit/s,
Wake-on-LAN (WoL) by interesting Packets, Link Status Change
and Magic PacketTM
IDE
2 ATA 100 Interfaces, up to 4 IDE Drives,

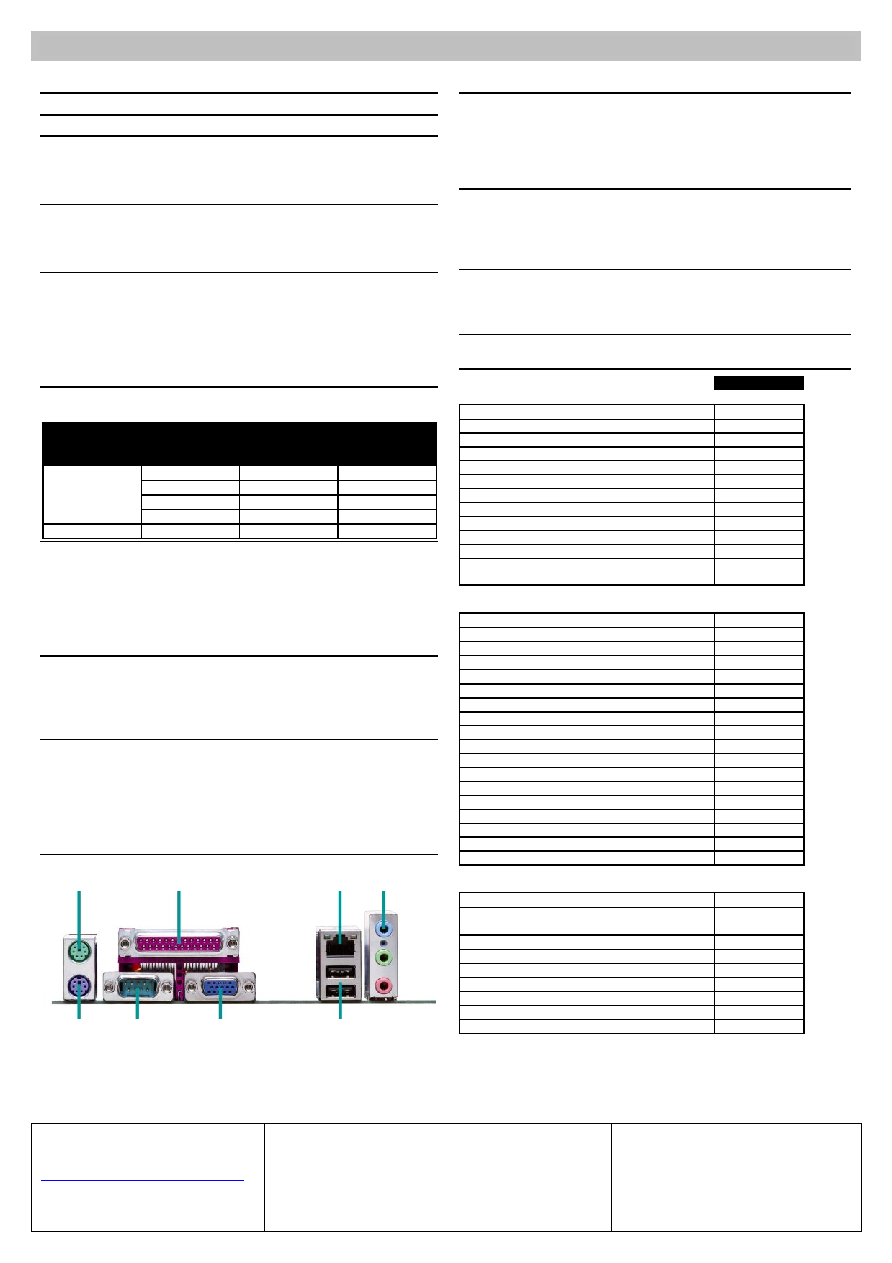

Versions
PS/2 Mouse Parallel LAN Audio
PS/2 Serial VGA USB
Keyboard A&B
