Datasheet: ADTM40M (ATMEL Corporation)

Atmel Fpga Integrated Development System (ids)



Download: PDF   ZIP
ATMEL Corporation

Document Outline

1
Features
Hardware
Supports Programming for Atmel AT40K/AT40KAL and AT94KALSeries of
SRAM-based Programmable System Level Integration (PSLI) Devices
Supports ISP (In-System Programming) for Atmel AT17 Series Configuration
EEPROMs
Built-in Clock Source with GCLK/FCLK Jumper Settings
Supports Modular Docking Platform for the ATDH40D FPGA Daughter Boards
Runs Off Portable 9V DC Power Supply or External Power
Supports 5.0V or 3.3V Supply
Designed to Work with Atmel IDS 5.0 or Above
Downloading for AT40K/AT17 Devices Direct from PC Parallel Port
Can be Used to Support FPSLIC
System Contents
ATDH2081
25-pin Parallel to 10-pin Header Adapter
ATDH40Dxxx
Package-specific Daughterboard (Variable)
ATDH40M
Programming Motherboard
Standard Parallel Cable (PC Parallel Port DB25), 10-pin Header Cable,
9V DC/200 mA, 2.1 mm Center Positive Power Supply
Description
The Atmel ATDH40M prototyping system allows designers to quickly and economi-
cally evaluate Atmel's fam ily of AT40K/AT40KAL FPGA and AT94K Field
Programmable System Level Integrated Circuit (FPSLIC
TM
) devices and Atmel's AT17
FPGA configuration memory devices. The ATDH40M board connects to any x86 PC
via parallel port through a 10-pin header cable to program the AT40K/AT40KAL
FPGA/AT94K FPSLIC, or through a parallel port cable to program the AT17 FPGA
Configuration EEPROMs. The motherboard interfaces with various daughter boards
in order to program different package footprints (see Table 1).
Table 1. Daughter Board Support List
Part Number
Description
ATDH40D84
84-pin Plastic Lead Chip Carrier
ATDH40D100
100-pin Very Thin Quad Flat Pack
ATDH40D100R
100-pin Rectangular Quad Flat Pack
ATDH40D144
144-pin Thin Quad Flat Pack
ATDH40D160
160-pin Plastic Quad Flat Pack
ATDH40D208
208-pin Plastic Quad Flat Pack
ATDH40D240
240-pin Plastic Quad Flat Pack
Programmable
System Level
Integration
Prototyping
System
ATDH40M
ATDH40DXXX
Rev. 1402B06/01
ATDH40M/D
2
The AT40K/AT40KAL FPGA devices are pin-compatible in
a given package footprint across the family. See Table 2 for
compatibility listings. The 208PQFP, for example, will sup-
port all AT40K family members.
FPSLIC is pin-compatible with AT40K/AT40KAL device
families and is supported by the ATDH40M Prototyping
System.
Note:
1. Daughtercard not available for ATDH40M.
2. Not all devices are available in all package options. Please check appropriate datasheet for a list of valid part/package
combinations.
Programming Setup
Figure 1 on page 3 is the board layout of the ATDH40M motherboard. Figure 2 shows the typical daughter board. To con-
nect the two boards together, the daughter board fits on top of the motherboard by aligning the two arrows together. The
two boards will only fit one way.
Table 2. Part and Package Availability Showing User I/O Counts
Package
Ordering Code
AT40K05/
AT40K05AL/
AT94K05AL
AT40K10
AT40K10AL
AT94K10AL
AT40K20/
AT40K20AL
AT40K40/
AT40K40AL
AT94K40AL
PC84
AJ
62
62
62
62
VQ100
AQ
78
78
-
-
RQ100
RQ
78
78
77
-
TQ144
BQ
114
114
114
114
PQ160
CQ
128
130
130
-
PQ208
DQ
128
161
161
161
BG225
(1)
AG
-
192
192
192
PQ240
EQ
-
192
193
193
PQ304
(1)
FQ
-
-
256
256
BG352
(1)
BG
-
-
256
289
BG432
(1)
CG
-
-
-
352
ATDH40M/D
3

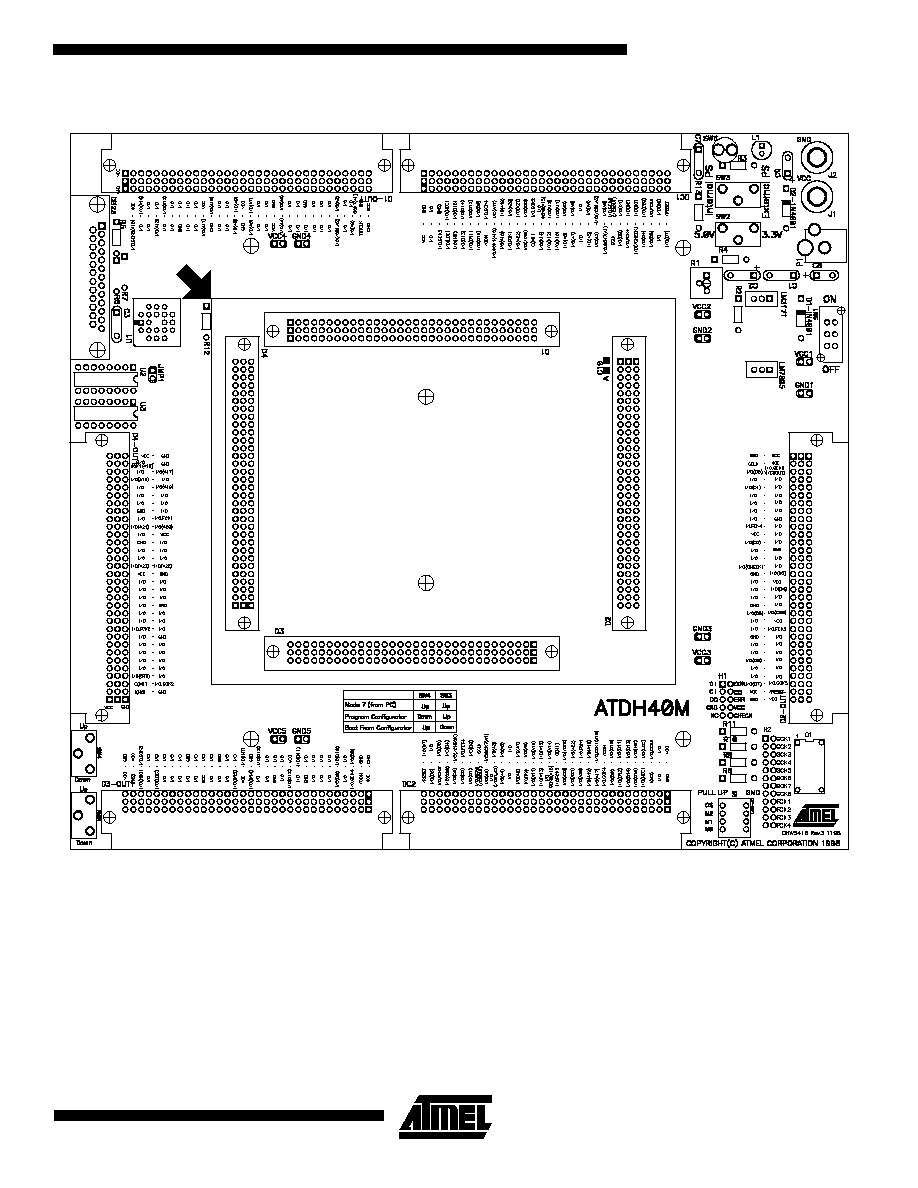

Figure 1. Motherboard Layout ATDH40M
ATDH40M/D
4

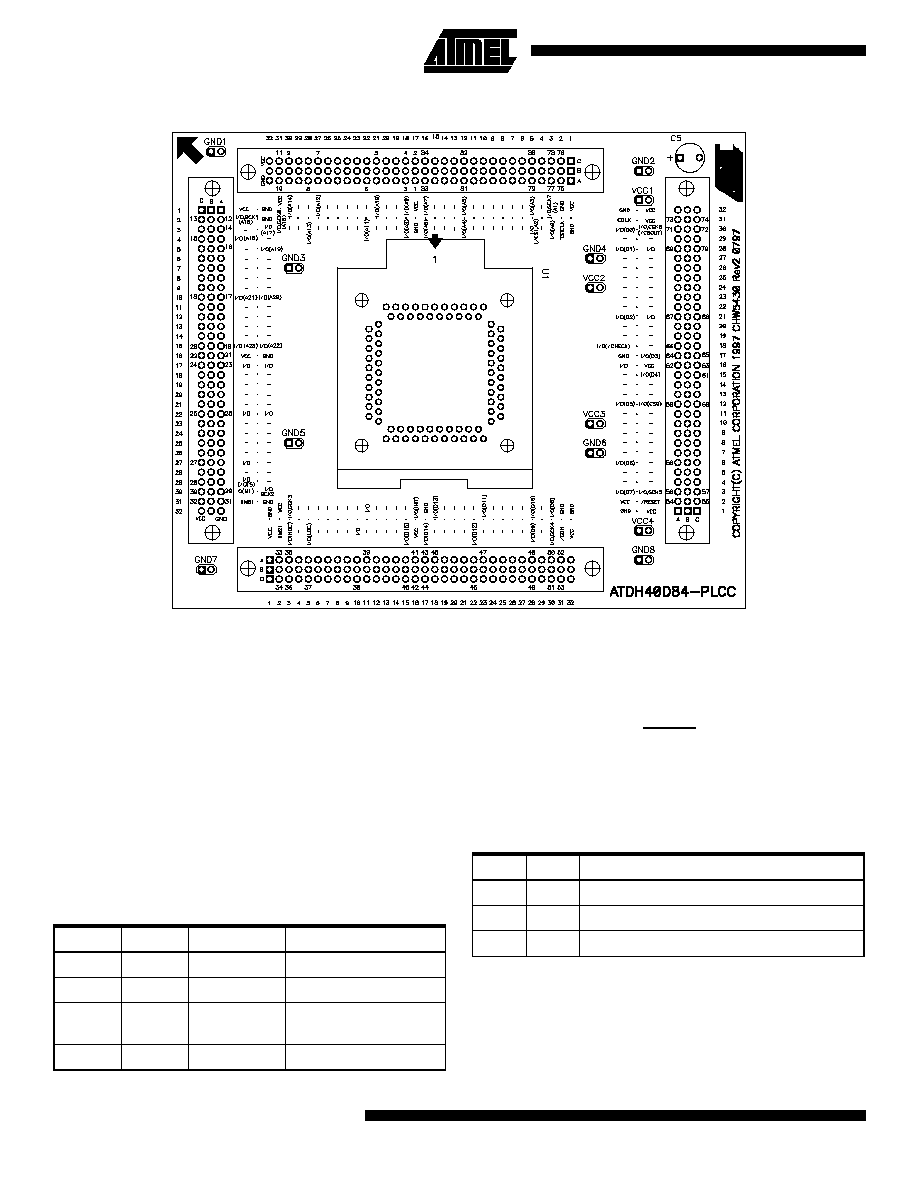

Figure 2. Daughter Board Layout Example ATDH40D84
Power Configuration
Power for the motherboard can come from two sources. It
can be supplied by either the jack inputs J1 and J2, or by a
9V power input P1. The source that will drive the mother-
board is determined by switch SW3. Power supplied by the
jacks uses the external setting. Power supplied by the
9V source uses the internal setting. Voltage on the
motherboard for the latter setting is regulated by switch
SW2. LV parts use the 3.3V setting while the rest use the
5.0V setting. The LED L1 will light up only when power is
correctly supplied to VCC. Table 3 lists the possible
configurations. AT40KAL and AT94KAL devices must use
3.5V power setting.
Program/Boot Settings
Switches SW4 and SW5 determine the program and boot
settings for the ATDH40M. They are located on the bottom
left corner. Table 4 lists the switch combinations and their
effects. SW4 controls the SEREN signal line of the mother-
board to the 2:1 multiplexer (device U3) and the AT17
(device U1). SW% connects signal D0 from the PSLI
device to either the AT17 configuration memory device only
(down) or to the PC interface (up).
Table 3. Motherboard Power Distribution
SW1
SW2
SW3
Voltage
Off
X
X
0.0V (no power)
On
X
External
Variable
On
3.3V
Internal
3.3V for
AT40KAL/AT94KAL
On
5.0V
Internal
5.0V for
AT40K
Table 4. Programming Modes
SW4
SW5
Effect
Up
Up
Program in Slave Serial from PC
Down
Up
Program AT17 Configuration Memory
Up
Down
Program in Master Serial from AT17
ATDH40M/D
5
Programming the AT40K FPGA Device
When SW4 and SW5 are set to up, the PSLI device can be
programmed by the PC parallel interface. The ATDH40M
interfaces with the PC through the 10-pin header socket H1
located on the bottom right corner. Programming the FPGA
is not possible by using the parallel port interface on the
motherboard. Located below the header H1 are the mode-
select dip-switches DIP-SW1. These control the mode set-
tings for the PSLI device (switches M0, (M1), M2). The
modes directly supported by the motherboard are only
Slave Serial and Master Serial. Programming the AT40K
FPGA from the PC can be achieved from the IDS desktop
or by using the software downld40.exe. Both tools accept
ASCII bitstream files generated by the IDS software (.BST).
Programming the AT17 Configuration
Memory Device
When SW4 is set to down and SW5 is set to up, the AT17
FPGA configuration memory can be programmed by the
parallel port interface located on the top left corner.
Programming the AT17 FPGA Configuration EEPROM is
not possible by using the 10-pin header H1. Programming
the AT17 FPGA Configuration EEPROM from the PC can
be achieved from the IDS desktop or by using the Configu-
rator Programming System (CPS) software supplied by the
IDS software.This software accepts the ASCII bitstream
files (.BST) generated by IDS.
Programming the PSLI Device Using
the AT17 Configuration Memory
When SW4 is set to up and SW5 is set to down, the AT17
Configurator can program the FPGA in Master Serial. To
ensure reliable system power-up, set jumper JMP1
(located below the Configurator socket). The Configurator
must be programmed prior to this setup.
Troubleshooting
1.
Check that the motherboard is connected to the PC
either through the parallel port or through the 10-pin
header.
2.
Check that the motherboard has power (SW1) and
the power configuration switches SW2 and SW3
are correct.
3.
Make sure programming configuration switches
SW4 and SW5 are correct.
4.
Verify that the daughter card is inserted correctly
and that it receives power.
5.
Verify that the PSLI device and/or the PSLI.
Configurator are placed in their sockets correctly.
6.
Set the mode switches before downloading to
the PSLI Device.
7.
Set the GCLK/FCLK jumpers before verifying
PSLI logic.
Technical Support
Check each of the items listed in the troubleshooting
section.
Contact your local Atmel Representative or Distributor
who provided the PSLI board for technical support.
Contact your local Atmel FAE (available at most sales
offices).
Contact the Atmel PSLI technical support hotline at (408)
436-4119. Hours are Monday-Friday 9:00 a.m. 6:00
p.m. PST.
E-mail Atmel PSLI technical support at
fpga@atmel.com
.
Fax inquiries to "FPGA Tech Support" at (408) 487-2637
