Datasheet: 90S2313 (ATMEL Corporation)

8-bit Microcontroller With 2k Bytes In-system Programmable Flash



Download: PDF   ZIP
ATMEL Corporation
1
Features
·
AVR
®
- High Performance and Low Power RISC Architecture
·
118 Powerful Instructions - Most Single Clock Cycle Execution
·
2K bytes of In-System Reprogrammable Flash
­ SPI Serial Interface for Program Downloading
­ Endurance: 1,000 Write/Erase Cycles
·
128 bytes EEPROM
­ Endurance: 100,000 Write/Erase Cycles
·
128 bytes Internal RAM
·
32 x 8 General Purpose Working Registers
·
15 Programmable I/O Lines
·
V
CC
: 2.7 - 6.0V
·
Fully Static Operation
­ 0 - 10 MHz, 4.0 - 6.0V
­ 0 - 4 MHz, 2.7 - 6.0V
·
Up to 10 MIPS Throughput at 10 MHz
·
One 8-Bit Timer/Counter with Separate Prescaler
·
One 16-Bit Timer/Counter with Separate Prescaler
and Compare and Capture Modes
·
Full Duplex UART
·
Selectable 8, 9 or 10 bit PWM
·
External and Internal Interrupt Sources
·
Programmable Watchdog Timer with On-Chip Oscillator
·
On-Chip Analog Comparator
·
Low Power Idle and Power Down Modes
·
Programming Lock for Software Security
·
20-Pin Device
Description
The AT90S2313 is a low-power CMOS 8-bit microcontroller based on the AVR
enhanced RISC architecture. By executing powerful instructions in a single clock
cycle, the AT90S2313 achieves throughputs approaching 1 MIPS per MHz allowing
the system designer to optimize power consumption versus processing speed.
The AVR core combines a rich instruction set with 32 general purpose working regis-
ters. All the 32 registers are directly connected to the Arithmetic Logic Unit (ALU),
allowing two independent registers to be accessed in one single instruction executed
in one clock cycle. The resulting architecture is more code efficient while achieving
throughputs up to ten times faster than conventional CISC microcontrollers.
(continued)

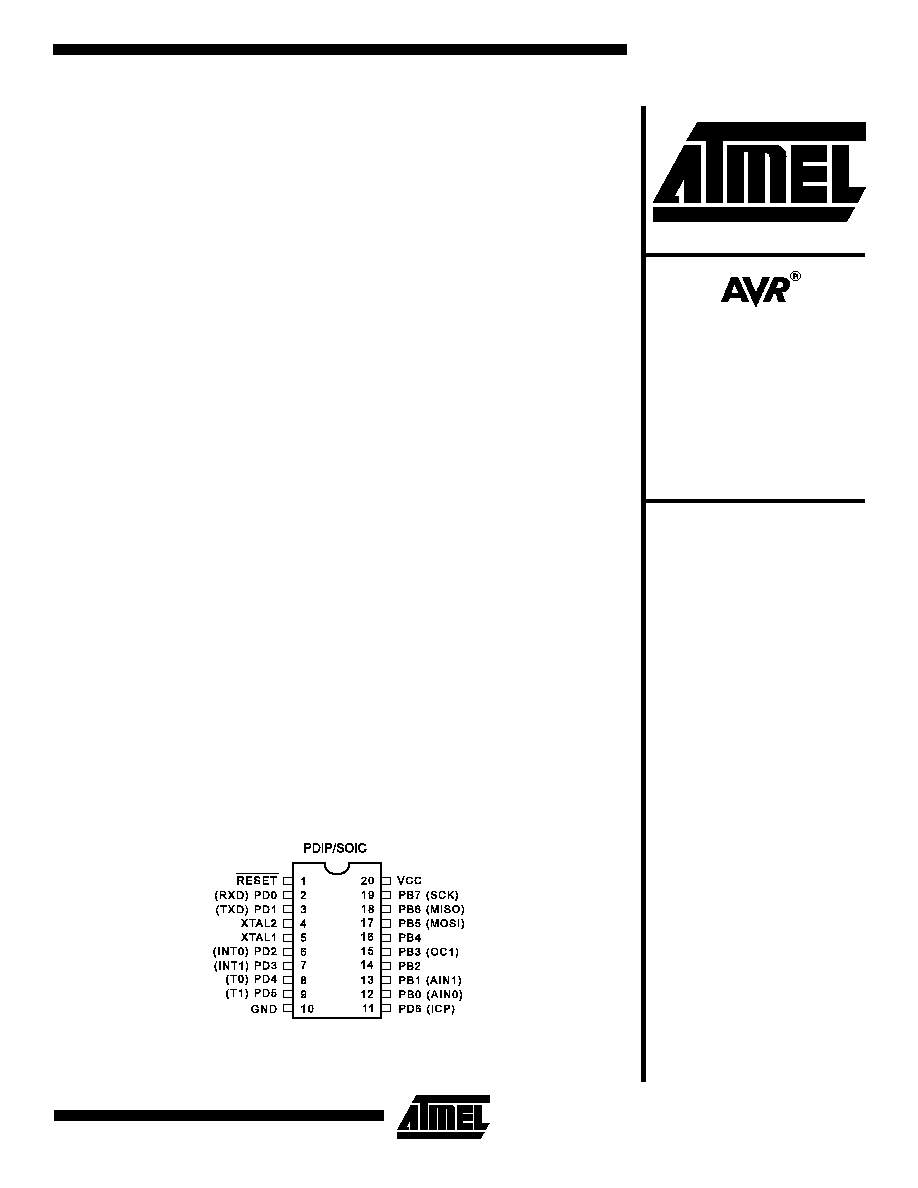

Pin Configuration
Rev. 0839DS­07/98
8-Bit
Microcontroller
with 2K bytes
In-System
Programmable
Flash
AT90S2313
Note: This is a summary document. For the complete 68 page
datasheet, please visit our web site at
www.atmel.com
or e-
mail at
literature@atmel.com
and request literature #0839D.
AT90S2313
2
Block Diagram

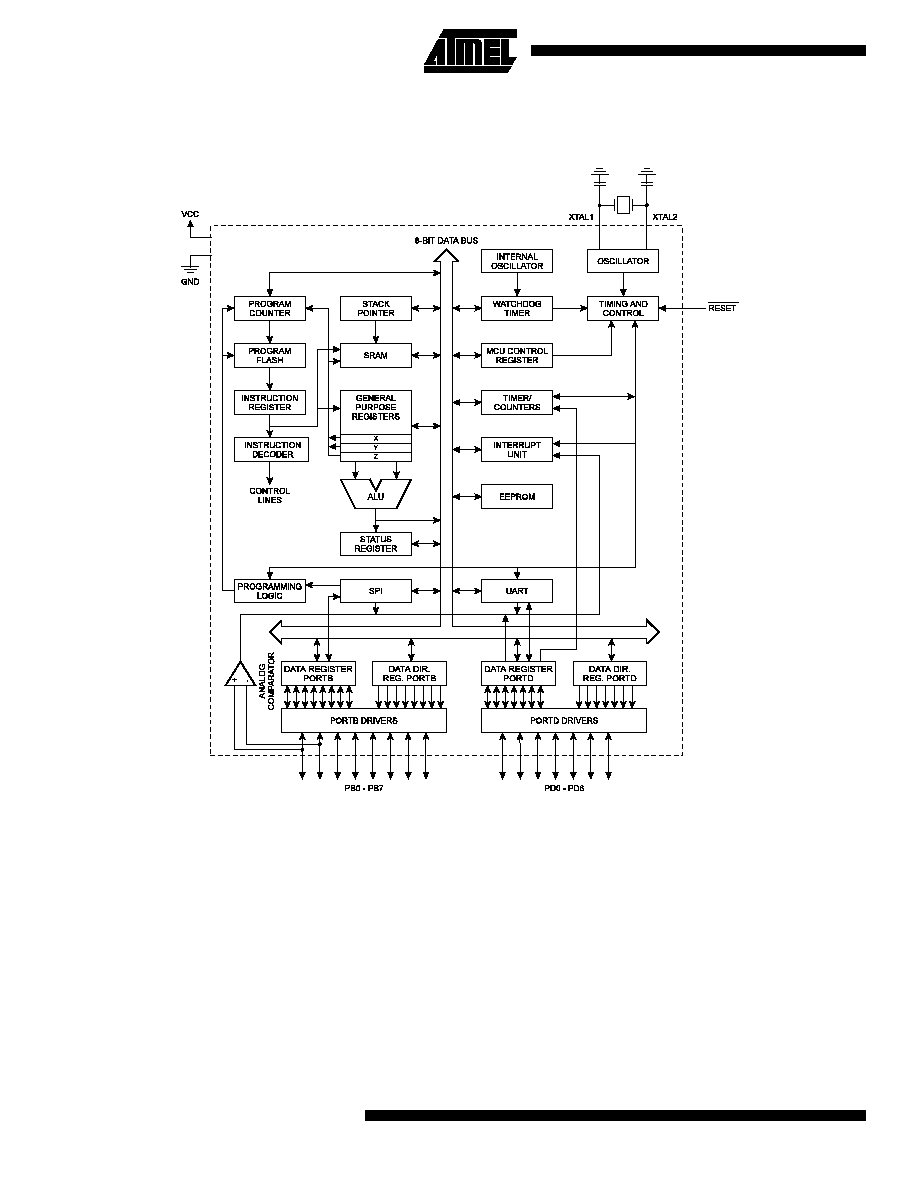

Figure 1. The AT90S2313 Block Diagram
The AT90S2313 provides the following features: 2K bytes
of In-System Programmable Flash, 128 bytes EEPROM,
128 bytes SRAM, 15 general purpose I/O lines, 32 general
purpose working registers, flexible timer/counters with
compare modes, internal and external interrupts, a pro-
grammable serial UART, programmable Watchdog Timer
with internal oscillator, an SPI serial port for Flash Memory
downloading and two software selectable power saving
modes. The Idle Mode stops the CPU while allowing the
SRAM, timer/counters, SPI port and interrupt system to
continue functioning. The power down mode saves the reg-
ister contents but freezes the oscillator, disabling all other
chip functions until the next interrupt or hardware reset.
The device is manufactured using Atmel's high density
non-volatile memory technology. The on-chip In-System
Programmable Flash allows the program memory to be
reprogrammed in-system through an SPI serial interface or
by a conventional nonvolatile memory programmer. By
combining an enhanced RISC 8-bit CPU with In-System
Programmable Flash on a monolithic chip, the Atmel
AT90S2313 is a powerful microcontroller that provides a
highly flexible and cost effective solution to many embed-
ded control applications.
The AT90S2313 AVR is supported with a full suite of pro-
gram and system development tools including: C compil-
ers, macro assemblers, program debugger/simulators, in-
circuit emulators, and evaluation kits.
AT90S2313
3
Pin Descriptions
VCC
Supply voltage pin.
GND
Ground pin.
Port B (PB7..PB0)
Port B is an 8-bit bi-directional I/O port. Port pins can pro-
vide internal pull-up resistors (selected for each bit). PB0
and PB1 also serve as the positive input (AIN0) and the
negative input (AIN1), respectively, of the on-chip analog
comparator. The Port B output buffers can sink 20mA and
can drive LED displays directly. When pins PB0 to PB7 are
used as inputs and are externally pulled low, they will
source current if the internal pull-up resistors are activated.
Port B also serves the functions of various special features
of the AT90S2313 as listed on page 38.
Port D (PD6..PD0)
Port D has seven bi-directional I/O pins with internal pull-up
resistors, PD6..PD0. The Port D output buffers can sink 20
mA. As inputs, Port D pins that are externally pulled low will
source current if the pull-up resistors are activated.
Port D also serves the functions of various special features
of the AT90S2313 as listed on page 43.
RESET
Reset input. A low on this pin for two machine cycles while
the oscillator is running resets the device.
XTAL1
Input to the inverting oscillator amplifier and input to the
internal clock operating circuit.
XTAL2
Output from the inverting oscillator amplifier
Crystal Oscillator
XTAL1 and XTAL2 are input and output, respectively, of an
inverting amplifier which can be configured for use as an
on-chip oscillator, as shown in Figure 2. Either a quartz
crystal or a ceramic resonator may be used. To drive the
device from an external clock source, XTAL2 should be left
unconnected while XTAL1 is driven as shown in Figure 3.
Figure 2. Oscillator Connections
Figure 3. External Clock Drive Configuration
AT90S2313
4
AT90S2313 Architectural Overview
The fast-access register file concept contains 32 x 8-bit
general purpose working registers with a single clock cycle
access time. This means that during one single clock cycle,
one ALU (Arithmetic Logic Unit) operation is executed. Two
operands are output from the register file, the operation is
executed, and the result is stored back in the register file -
in one clock cycle.
Six of the 32 registers can be used as three 16-bits indirect
address register pointers for Data Space addressing -
enabling efficient address calculations. One of the three
address pointers is also used as the address pointer for the
constant table look up function. These added function reg-
isters are the 16-bits X-register, Y-register and Z-register.
The ALU supports arithmetic and logic functions between
registers or between a constant and a register. Single reg-
ister operations are also executed in the ALU. Figure 4
shows the AT90S2313 AVR Enhanced RISC microcontrol-
ler architecture.
In addition to the register operation, the conventional mem-
ory addressing modes can be used on the register file as
well. This is enabled by the fact that the register file is
assigned the 32 lowermost Data Space addresses ($00 -
$1F), allowing them to be accessed as though they were
ordinary memory locations.
The I/O memory space contains 64 addresses for CPU
peripheral functions as Control Registers, Timer/Counters,
A/D-converters, and other I/O functions. The I/O memory
can be accessed directly, or as the Data Space locations
following those of the register file, $20 - $5F.
The AVR has Harvard architecture - with separate memo-
ries and buses for program and data. The program memory
is accessed with a two stage pipeline. While one instruction
is being executed, the next instruction is pre-fetched from
the program memory. This concept enables instructions to
be executed in every clock cycle. The program memory is
In-system Programmable Flash memory.
With the relative jump and call instructions, the whole 1K
address space is directly accessed. Most
AVR
instructions
have a single 16-bit word format. Every program memory
address contains a 16- or 32-bit instruction.
During interrupts and subroutine calls, the return address
program counter (PC) is stored on the stack. The stack is
effectively allocated in the general data SRAM, and conse-
quently the stack size is only limited by the total SRAM size
and the usage of the SRAM. All user programs must initial-
ize the SP in the reset routine (before subroutines or inter-
rupts are executed). The 8-bit stack pointer SP is read/write
accessible in the I/O space.
The 128 bytes data SRAM + register file and I/O registers
can be easily accessed through the five different address-
ing modes supported in the AVR architecture.
The memory spaces in the AVR architecture are all linear
and regular memory maps.
AT90S2313
5
Figure 4. The AT90S2313 AVR Enhanced RISC Architecture
Figure 5. Memory Maps
